    Alimak Special

Special solutions are often requested by our customers. Here are some examples of what
we can deliver:

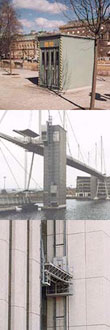

Kungsträdgården Park, Stockholm
This special 3.5 tonne lift literally pops up from under the street. It is used by the Stockholm Water Company to transport service personnel and replacement parts to a pumping station 4 m below ground.


Royal Victoria Docks, London
Four external, panoramic hoists provide access to the new footbridge in London's Docklands. Each car takes 11 passengers and the total height of travel is 14 m.

New Telecommunications Centre, Kuwait
A twin-masted platform with a capacity of 12 tonnes is used by the Ministry of Public Works to service the new Telecommunications Centre. The platform travels a total of 62 m.



Payload capacity Biggest so far is 24,000 kg
Speed up to 1.0 m/s (depending on the capacity)
Max. lifting height Practically unlimited (highest so far is 645 m)
Lift car size Standard range modularity enables customised car widths and lengths
Motor control Direct-On-Line (DOL) or Frequency Control (FC)
Safety device type GF/GFD
Power supply range 380–690 V, 50 or 60 Hz, 3 phase
Type of mast Any suitable Alimak mast
Length mast section 1.508 m
Rack module 5 or 8
