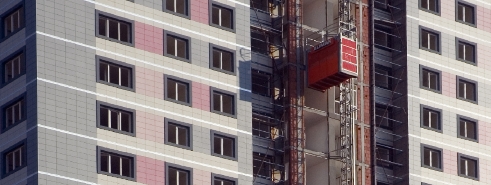

Passenger and freight elevators
Alimak SE passenger and freight elevators are designed from the drawing board not only to excel as people carriers in multiple applications, but also to be able to handle materials of loads up to 3,300 kilograms. All Alimak elevators are built to last in the harshest environments.

Industry mover and shaker
ALIMAKk has been an industry leader in supplying elevators based on rack & pinion drive technology for almost 50 years. Over 30,000 ALIMAKk rack & pinion solutions have been installed for a broad spectrum of industries around the world, giving us a unique and extensive engineering knowledge gained from each individual installation.
Elevators from ALIMAKk daily demonstrate their ability to withstand the toughest challenges, providing safe, reliable access, anytime and anywhere needed, from silos, chimneys, and boiler houses, to warehouses, container cranes, underground shafts, hull columns, and derrick towers.

Modular system
The enhanced efficiency delivered by the Alimak SE line stems in part from the unique modular design of the cars that provides a remarkable 40 different car sizes within the standard range. All elevators are based on a variety of wall panels made of the Alimak self locking, aluminium profiles. These wall panels meet different elevator needs, and create adaptable floor and roof configurations.


Main benefits

• No shaft is required – weight savings of up to 43,000 kg compared to other systems
• Modular design, delivering a wide range of car sizes and capacities
• Two individual elevators can operate on one single mast column for greater operational flexibility
• Drive machinery located on the car, means no costly machine room is required
• Fully collective elevator control system
• Durable materials: extruded aluminium car wall panels with car support frame and mast sections of hot dip galvanized steel. All stainless steel electrical cabinets and landing control boxes. Optional stainless steel cars
• Wide range of optional equipment and functions, delivering you the right equipment for each individual task
• Remote Monitoring System – The online A3 remote control can also be added to monitor elevator operations 24/7 and pro-actively trace faults should they arise to reduce downtime.

Payload capacity	300–3,300 kg (increased capacity on request)
Loading classifications (ANSI)	Class A, B, C1, C2, (C3)
Travelling speed	0.4–1.0 m/s
Max. lifting height	250 m (increased lifting height on request)
Elevator car sizes	40 car sizes available
Car width (internal)	0.78–1.82 m
Car length (internal)	1.04–3.90 m
Car height (internal)	2.35 m or 2.17 m
Motor control	Frequency control (FC) or Direct-on-line (DOL)
No. of motors	1–3
Power supply range	380–500 V, 50 or 60 Hz, 3 phase
Type of mast	Type "A", "A-Mini", "FE" or "A-50"
Length mast section	1.508 m

Passenger and freight elevators for hazardous areas
Built on the experience gained from thousands of installations worldwide, the new ALIMAK SE-Ex is designed to deliver on your access requirements for heavy transport needs in hazardous environments. The ALIMAK SE-Ex sets a new benchmark for the safer, efficient vertical transportation of personnel and materials on derricks, hull columns, platform modules, oil refineries, LNG terminals, chemical plants and other similar industrial environments.

New design, new flexibility
Increased efficiency, productivity and safety are just three of the benefits delivered by the new ALIMAK SE-Ex range of freight and passenger elevator solutions from the company that pioneered the rack and pinion drive system back in 1962 to safely and efficiently transport people and materials. The enhanced efficiency delivered by the ALIMAK SE-Ex stems in part from the unique modular design of the cars that provide many different car sizes within the standard range. All elevators are based on a variety of wall panels made of the characteristic Alimak self locking, aluminum profiles. These wall panels meet different elevator needs, and create adaptable floor and roof configurations. A more rigid car design is built on a solid car floor and stiffened beams, which supports greater load capacity on a single mast.

Remote monitoring
The well proven Alimak Lift Control system ALC-II ensures both efficiency and ease of use. As an added bonus, ALIMAKks’ online A3 remote monitoring system can be fitted as an accessory. This gives the ability to fully monitor the elevator and trace any faults instantly from remote locations. This enhancement to our standard control system can speed up corrective diagnostics and minimize downtime.


Main benefits

• No shaft is required – weight savings of up to 43,000 kg compared to other systems
• Modular design delivering a wide range of car sizes and capacities
• Fully compliant with ATEX and EN-13463 as well as ANSI 17.1 and NEC codes. Witness tested by third party
• Two individual elevators can operate on one single mast column for greater operational flexibility
• Drive machinery located on the car means no costly machine room is required
• Fully collective elevator control system
• Durable materials: extruded aluminium car wall panels with car support frame and mast sections of hot dip galvanized steel. All stainless steel electrical cabinets and landing control boxes. Optional stainless steel cars are available
• Wide range of optional equipment and functions delivering you the right equipment for each individual task
• Remote Monitoring System – The online A3 remote control can also be added to monitor elevator operations 24/7 and pro-actively trace faults should they arise to avoid downtime.

Max. payload capacity, FC	1,200–2,500 kg
Max. payload capacity, DOL	450–1,200 kg
Loading classifications (ANSI)	Class A, B, (C3 optional)
Travelling speed, FC	0.5–0.7 m/s
Travelling speed, DOL	0.4–0.6 m/s
Max. lifting height	80 m (increased lifting height on request)
Motor control	Frequency control (FC) or Direct-on-line (DOL)
No. of motors	1–3
Elevator car sizes	18 car sizes available, min. 0.91 x 1.30 m, max. 1.30 x 2.73 m or 1.56 x 2.21 m
Power supply range	380–480 V, 50 or 60 Hz, 3 phase
Fuse ratings	35 A, 63 A or 100 A
Type of mast	Rectangular (FE) or square (A50), tubular steel with integrated rack
Length mast section	1.508 m
Regulations	ATEX or NEC
Protection class ATEX	Zone 1* or 2, Gas group I, IIA or IIB, Temp. class T1–T3 (T4)
Protection class NEC	Class 1 Division 2, Gas group C or D, Temp. class T1–T3 (T4)
Dust, NEC	Class 2, Division 2, Dust group F
